振动流化床干燥机(CE)
Vibrating Fluidized Bed Drying Equipment (CE Approved)

Rake_dryer

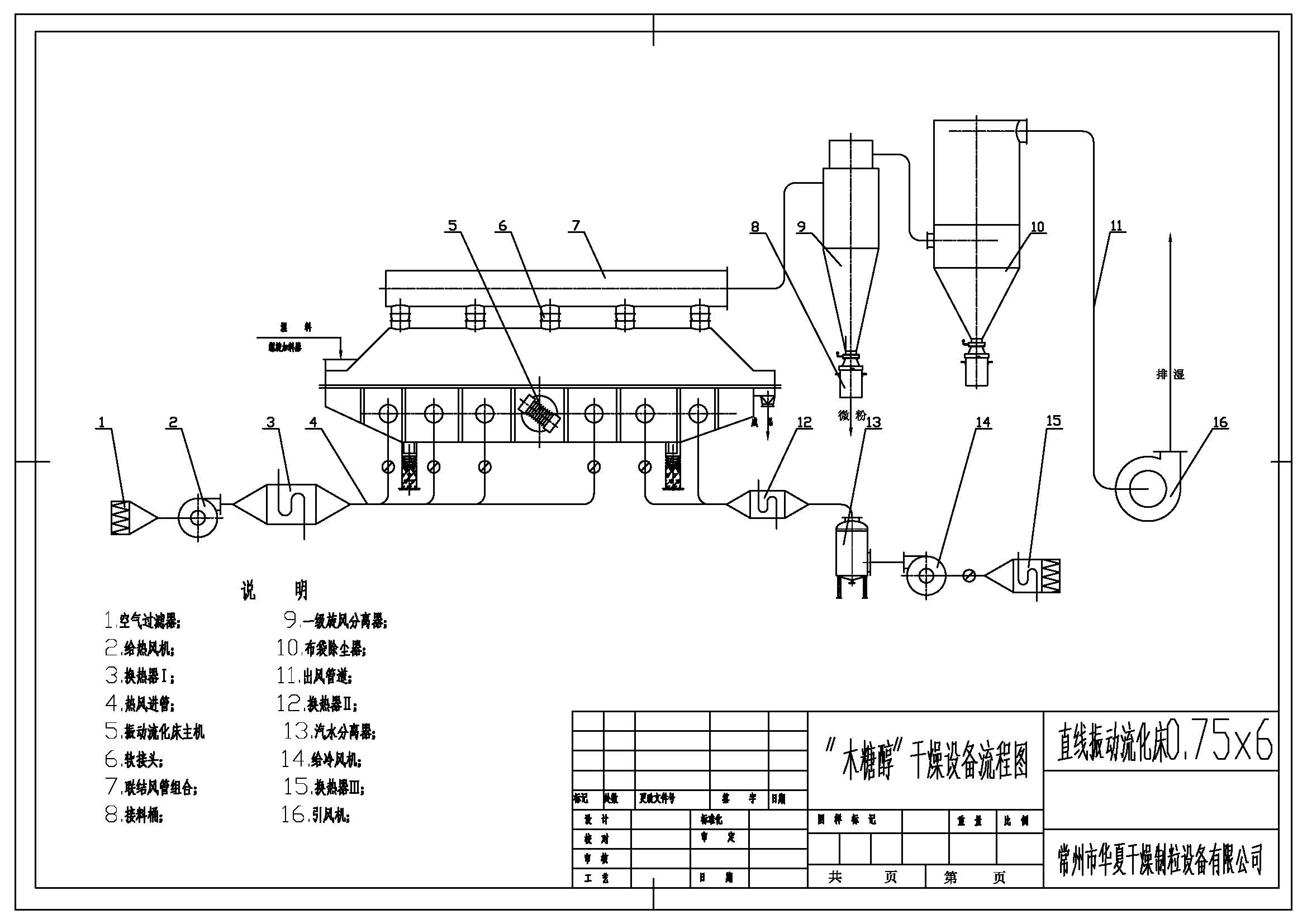

振动流化床干燥机工艺流程图



1.原理Principles

物料自进料口进入机内,在振动力的作用下,物料沿水平方向抛掷向前连续运动,热风向上穿过流化床和湿物料换热,湿空气经旋风分离器除尘后由排风口排出,干燥物料由排料口排出。

Raw material is fed into the machine from the inlet and moves forward continuously along the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out heat exchange with humid raw material. Then the damp air is exhausted out through cyclone separator and dust extractor and the dry raw material is discharged through discharge outlet.

2.应用范围Scope of application

◆医药化工:各种压片颗粒,硼酸、硼砂、苯二酚、苹果酸、马来酸等。

◆食品建材:酒糟、味精、砂糖、食盐、矿渣、豆瓣、种籽等。

◆还可用于物料的冷却、增湿等。

◆ Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene,malicacid, maleic acid and so on;

◆ Foodstuff and construction material industries: less,monosodium glutamate, edible sugar, edible salt, mine residue,Bean, seeds and so on;

◆ It can also be used for raw materials to add damp or cooling and so on.

3.特点Featurs

◆物料受料均匀,热交换充分,干燥强度高,比普通干燥机节能 30 %左右。

◆振动源采用振动电机驱动,运转平稳、维修方便、噪音低、寿命长。

◆流态化稳定,无死角和吹穿现象。

◆可调性好,适应面宽。

◆对物料表面损伤小,可用于易碎物料的干燥,物料颗粒不规则时亦不影响工作效果。

◆采用全封闭式的结构,有效地防止了物料与空气的交叉污染,作业环境清洁。


◆ Raw material is heated evenly and heat exchange is fully and dry capacity is high. Compared with ordinary dryer, the energy can be saved about 30%.

◆ The vibration is created by motor. It is stable in operation and convenient in maintenance, with low noise and long life;

◆ The fluidized state is stable and no dead angle and phenomenon of being broken out;

◆ It is good in adjustment and wide in application.

◆ There is little damage to the surface of raw materials. The equipment can be used for drying raw materials that are easily broken. The drying effect will not be affect ed even if raw materials are anomalous shaped; It can efficiently prevent the cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

4.技术参数Technical parameter

型号Model

干燥面积

Area of

fluidize-bed (m2)

进风温度

Temperature o

f inlet air ( ℃ )

尾气温度

Temperature of

outlet air ( ℃ )

水分蒸发量

Capacity to evaporate

vapor/moisture (Kg/h)

振动电机

Vibration motor

型号Model
功率Power(Kw)
GZQ3 ×0.30
0.9
70~140
40~70
20~35
ZDS31-6
0.8 ×2
GZQ4.5 ×0.30
1.35
70~140
40~70
35~50
ZDS32-6
0.8 ×2
GZQ4.5 ×0.45
2.025
70~140
40~70
50~70
ZDS32-6
1.1 ×2
GZQ4.5 ×0.60
2.7
70~140
40~70
70~90
ZDS41-6
1.1 ×2
GZQ6 ×0.45
2.7
70~140
40~70
80~100
ZDS41-6
1.5 ×2
GZQ6 ×0.60
3.6
70~140
40~70
100~130
ZDS42-6
1.5 ×2
GZQ6 ×0.75
4.5
70~140
40~70
120~140
ZDS42-6
2.2 ×2
GZQ6 ×0.90
5.4
70~140
40~70
140~170
ZDS42-6
2.2 ×2
GZQ7.5 ×6.0
4.5
70~140
40~70
130~150
ZDS51-6
2.2 ×2
GZQ7.5 ×0.75
5.625
70~140
40~70
150~180
ZDS51-6
3.0 ×2
GZQ7.5 ×0.90
6.75
70~140
40~70
160~210
ZDS51-6
3.0 ×2
GZQ7.5 ×1.2
9
70~140
40~70
200~260
ZDS51-6
3.0 ×2
