粗碎机(CE)
Rough Crusher ( CE Approved )

单锥真空干燥机

1. 概述( Description ):

粗碎机广泛应用于制药工业,食品工业,化学,橡胶,电子工业等领域。
Rough crusher is a kind of crusher widely used in pharmaceutical industry ,food industry , chemical industry, Rubber industry ,Electrical industry ,etc… .

2. 原理( Principle ):

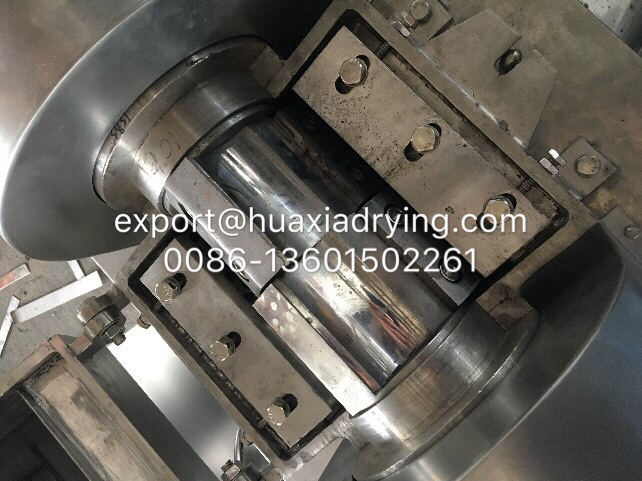

整个系统包括固定的定刀和高速旋转的勾状刀或者剪切式动刀,动刀下面固定一张多孔网,网孔的大小可选,物料从上部的进料口流入,被动刀和定刀撕碎或切碎,小于筛网孔径的物料穿过筛网排出,其余大块物料继续在里面破碎,当动刀旋转的时候,会产生正压,有气流产生,若用于固体粉碎,可能会产生粉尘,一个额外的除尘器需要安装在粗碎机的旁边,用来收集从粗碎机出来的粉尘。

The whole system include a fixed knife and a high speed rotating knife group , a net under the knife , the net hole size is selectable , material come in from the top inlet and was crushed by rotating knife and fixed knife , the crushed material which size less than net hole can come out , other big briquettes was continuously crushed by rotating knife.  when knife rotating , some pressure and air flow generated ,if for crush solid material without moisture , one additional filter beside the crusher for collect the dust from the outlet of crusher is necessary .

双锥混合机15000L

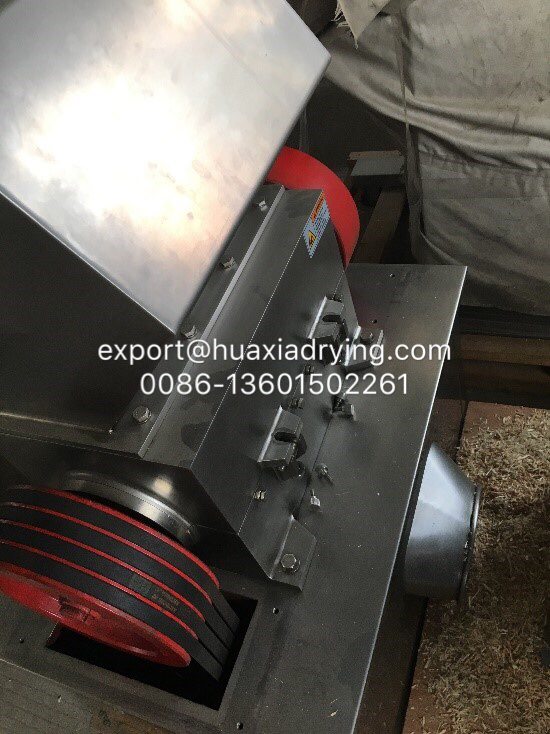

粗碎机

Rough_crusher

3、应用范围( Application Scope )

适用于需要将原料破碎成颗粒,筛网的孔径一般在10 -20mm 。
It is suitable for the raw materials that need to be crushed into granules , the net size normally in10 to 20 mm

4、技术参数Technical parameter

型号Model

CSJ-100

CSJ-200

产量Capacity(kg/h)

50-300

50-700

进料粒度
Size of input granules(mm)

≤50

≤50

出料粒度
Size of output granules(mm)

5-20

5-20

装机功率
Power(kw)

3

7.5

转速
Speed of rotating knife(rpm)

400

400

外形尺寸
Overall size
(L×W×H)(mm)

700×600×1270

1080×950×1450

重量
Weight (kg)

300

800

Note: customized equipment is acceptable for us .
CE & UL requirement is acceptable for us .
