节能干燥机--(真空)内热耙式干燥机(通过欧盟CE & PED认证)
Energy Saving Drying Equipment --Vacuum Rake Dryer(
Shaft & Rake with Heating Function)
(CE&PED Approved)
1. 应用( Application ):
1.1医药、食品、化工等行业进行以下物料干燥:
For drying following material in medical , food , chemical industries :
1.2适用于浆状、膏糊状、粉状物料。
Suit for the material like slurry , cake , powder .
1.3要求低湿干燥的热敏性物料。
Suit for thermosensitive materials which need low temperature drying .
1.4易氧化、易爆、强刺激、剧毒物料。
Suit for easy oxide ,explosion , high irritation ,high toxic material .
1.5要求回收有机溶剂的物料。
Suit for the drying process need to recycling organic solvents .
2.特点( Features ):
2.1本机夹层与搅拌轴同时加热,传热面大,热效率高。
Jacket and shaft and rake with heating function , with bigger heating area , high heat efficiency .
2.2本机搅拌轴可正反转,使物料在筒内形成连续循环状态,进一步提高了物料受热的均匀度。
Dryer shaft can turning in FWD and REV direction. Material in the dryer in a continuous circling mode to improve the heating evenness.
2.3本机搅拌轴采用螺旋分布,从而可顺利进行浆状、膏状、糊状物料干燥。
Dryer rake well distributed on the shaft according to a spiral .
3.技术参数( Technical Parameter ):
项目ITEM |
机 型 Model |
|||||||||
名称NAME |
单位UNIT |
ZPG-500 |
ZPG-750 |
ZPG-1000 |
ZPG-1500 |
ZPG-2000 |
ZPG-3000 |
ZPG-5000 |
ZPG-8000 |
ZPG-10000 |
工作容积 |
L |
300 |
450 |
600 |
900 |
1200 |
1800 |
2400 |
4800 |
6000 |
加热面积 |
m2 |
6 |
7.6 |
9.3 |
12.3 |
14.6 |
19.3 |
25 |
28 |
33 |
搅拌转速 |
rpm |
6-30无级调速 |
||||||||
功率 |
kw |
4-11 |
5.5-18.5 |
5.5-22 |
7.5-30 |
11-37.5 |
15-45 |
18.5-55 |
22-55 |
45-110 |
夹层设计压力 |
MPa |
≤0.3 |
||||||||
筒内压力 |
MPa |
-0.1-0.15 |

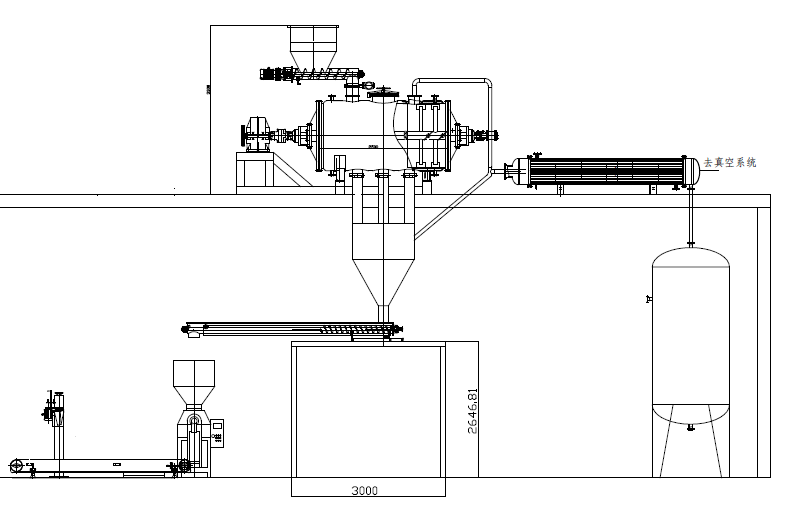

4.工艺流程( Technical Flow):
5、典型物料:
唑酸钠、颜料、生物饲料、磷酸铁锂、橡胶助剂、
无水硫化钠、对苯二甲酸、元明粉、2-肼基-4-甲基苯并咪唑、泥浆状 高糊状 100目以下物料 各种颜料、泥头状物料 滤并 离心机滤并纯碱洗涤剂、
碱石淀粉、染料 颜料、粘土灰等 粘土等 水泥等 100目以下物料 溶液 合成纤维、结晶 真空液、乳浊液 甘薯片、矿砂等 悬浮液
