不锈钢多功能粉碎机(CE)
Multi-Function Crusher ( made of stainless steel )
( CE )
1. 概述( Description ):
多功能粉碎机广泛应用于制药工业,食品工业,化学工业等领域。
Multi-function crusher is a kind of crusher widely used in pharmaceutical industry ,food industry , chemical industry ,etc… .
2. 原理( Principle ):

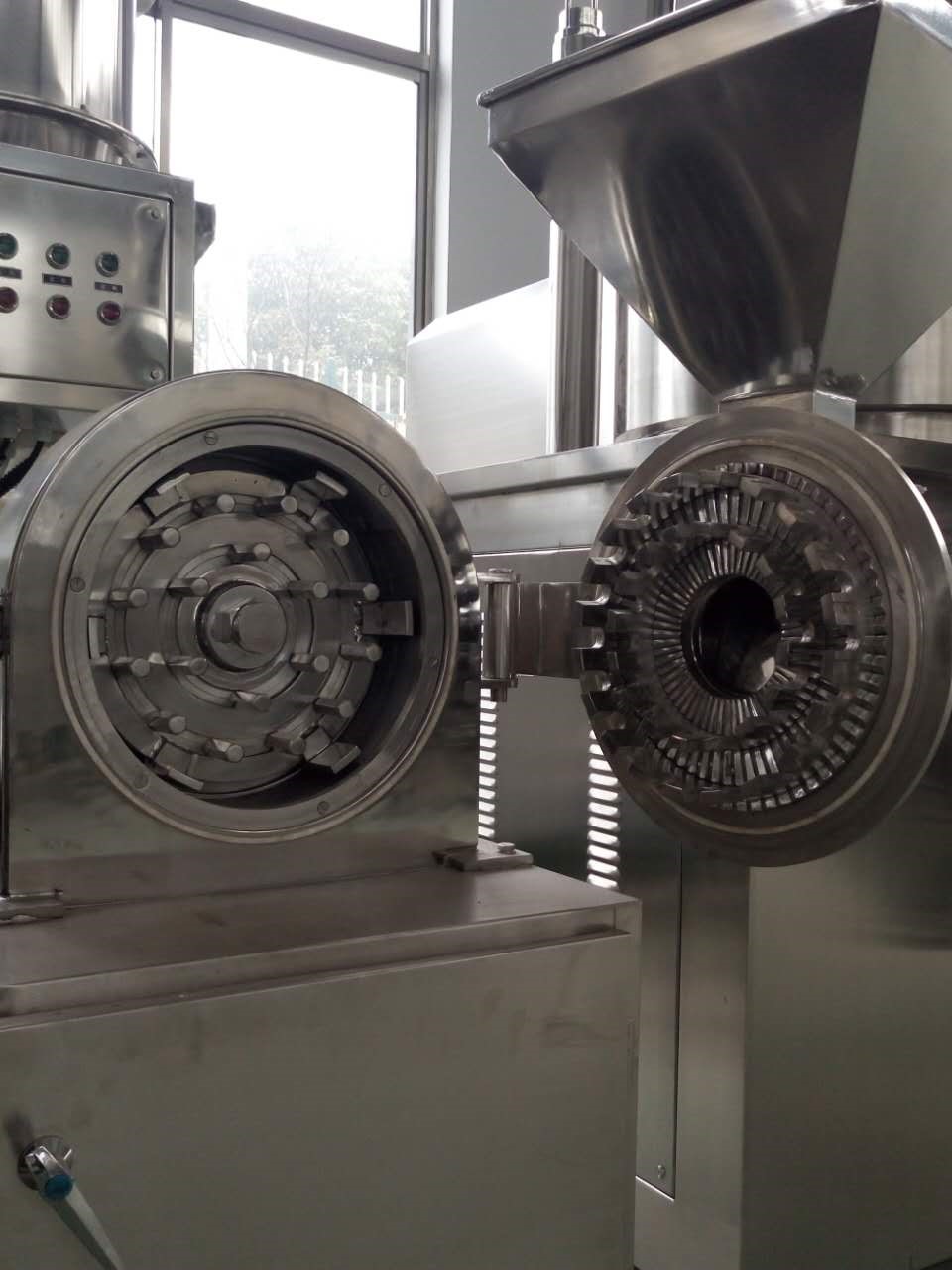

整个系统包括固定锤头组和高速旋转的锤头组,两组锤头都在一个金属网里面,网孔的大小可选,物料从上部的进料口流入,被动锤和定锤破碎,小于筛网孔径的粉末穿过筛网排出,其余大颗粒继续在里面破碎,当锤头旋转的时候,会产生正压,有气流产生,一个额外的除尘器在破碎机的旁边,用来收集从破碎机出来的粉尘。
The whole system include a fixed hammer group and a high speed rotating hammer group , all these two hammer group are inside a net , the net hole size is selectable , material come in from the top inlet and was crushed by rotating hammer and fixed hammer , the powder which size less than net hole can come out , other big granules was continuously crushed by hammer inside the net . when hammer rotating , some pressure and air flow generated , one additional filter beside the crusher for collect the dust from the outlet of crusher .
3、应用范围( Application Scope )
适用于需要将原料破碎成粉末,筛网的孔径一般在30目-200目。
It is suitable for the raw materials that need to be crushed into powder , the net size normally in mesh 30 to mesh 200
4、技术参数Technical parameter
spec |
unit |
20B/20Bset |
30B/30Bset |
40B/40Bset |
60B/60Bset |
产量 |
(kg/h) |
60-150 |
100-300 |
160-800 |
500-1500 |
主轴转速 |
(r/min) |
4500 |
3800 |
3400 |
2800 |
进料粒度 |
(mm) |
6 |
10 |
12 |
15 |
粉碎细度 |
(mesh) |
60-150 |
60-120 |
60-120 |
60-120 |
电机功率 |
(kw) |
4 |
5.5 |
11 |
15 |
风机功率 |
(kw) |
1.5 |
1.5 |
1.5 |
2.2 |
重量 |
(kg) |
250 |
320 |
550 |
680 |
外形尺寸 |
(mm) |
550×600×1250 |
600×700×1450 |
800×900×1550 |
1000×900×1680 |

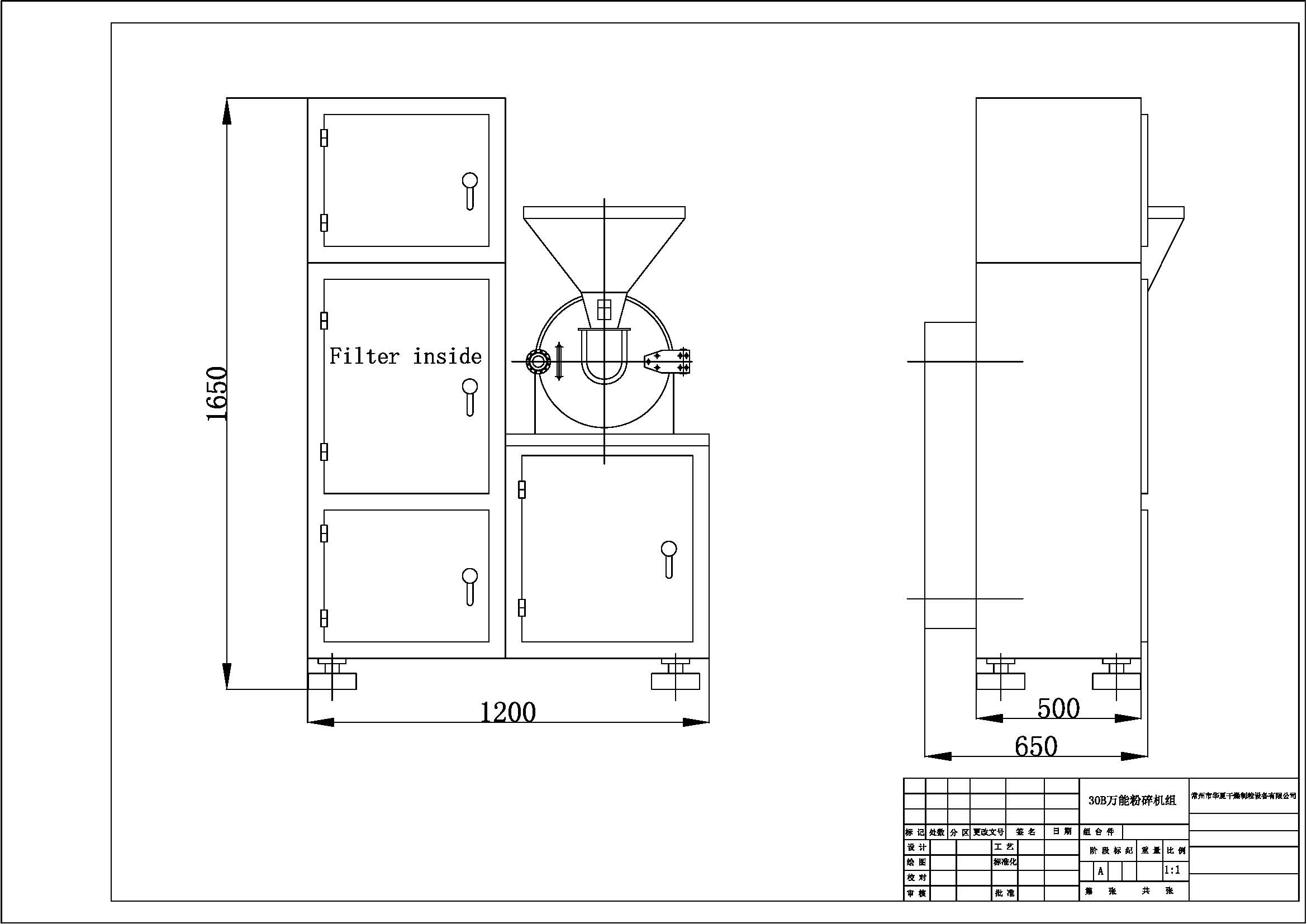

带除尘的外形尺寸 |
(mm) |
1100×600×1650 |
1200×650×1650 |
1350×700×1700 |
1550×1000×1750 |
