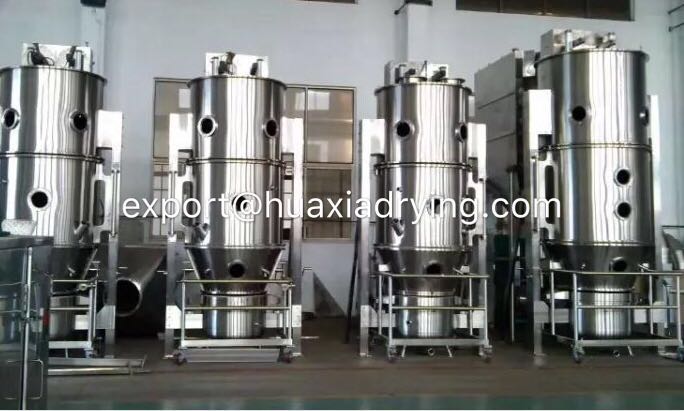

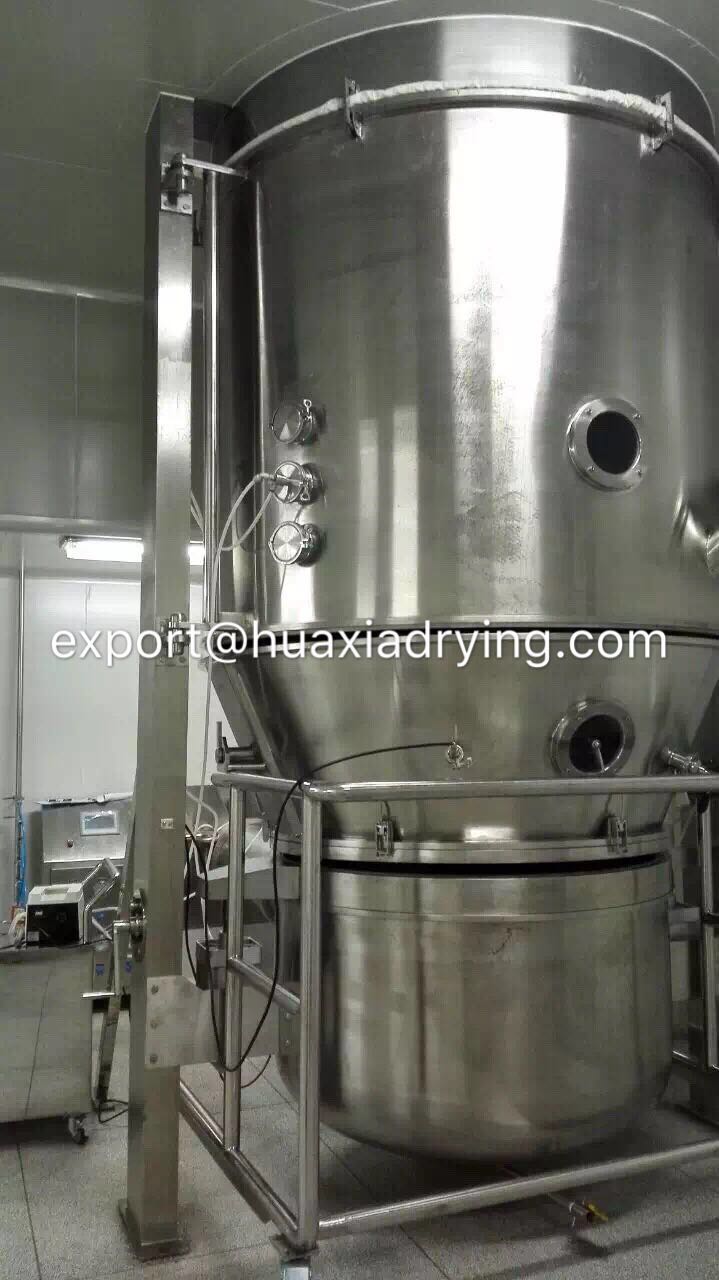

高效沸腾干燥机(CE)
High Efficiency Fluidized Bed Drying Equipment
(CE Approved)
1.应用范围Scope of application
◆机制螺杆挤压颗粒、摇摆颗粒、湿法高速混合制粒颗粒。
◆ Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing;
◆医药、食品、饲料、化工等领域湿颗粒和粉状物料干燥。
◆ Suitable for drying humidity block or powder raw material in the fieldssuch as pharmaceutical, foodstuff , feed, chemical industries and so on;
◆大颗粒,小块状,粘性块粒状物料。
◆ The raw material is large in granule and small in block and having adhesiveproperty;
◆魔芋、聚丙烯酰胺等干燥时体积变化的物料。
◆ Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
2.原理Principle
空气经加热净化后,由引风机从下部导入,穿过料斗的孔洞板。在工作室内,经搅拌和负压作用形成流态化 ,水份快速蒸发后随着排气带走,物料快速干燥。
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material,. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the material is dried quickly.
3.特点
◆流化床为圆形结构,避免死角。
◆ The structure of fluidized bed is round so as to avoid dead corner;
◆料斗设置搅拌,避免潮湿物料团聚及干燥时形成沟流。
◆ Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow;
◆采用翻倾卸料,方便迅速彻底,亦可按要求设计自动进出料系统。
◆ The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as request too;
◆密闭负压操作,气体经过过滤。操作简便,清洗方便,是符合GMP要求的理想设备。
◆ It is operated at the conditions of negative pressure and seal .The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP;
◆干燥速度快,温度均匀,每批干燥时间一般在 15-45 分钟。
◆ The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for each batch.
4.技术参数Technical Parameter
项目Item |
单位Unit |
型号Type |
|||||||
60 |
100 |
120 |
150 |
200 |
300 |
500 |
|||
产量Production capacity |
Kg/batch |
30~60 |
60~100 |
80~120 |
100~150 |
120~200 |
200~300 |
300~500 |
|
原料车Raw material container |
直径Dim |
mm |
1000 |
1000 |
1200 |
1200 |
1400 |
1600 |
1800 |
容积Volume |
L |
220 |
330 |
420 |
500 |
670 |
1000 |
1500 |
|
风机Fan |
风量Air volume |
m3/h |
2361 |
3488 |
4000 |
4901 |
6032 |
7800 |
10800 |
风压Air Pressure |
Pa |
5825 |
5227 |
5227 |
6659 |
7718 |
9316 |
9316 |
|
功率Power |
Kw |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
45 |
|
搅拌功率Stirring power |
Kw |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
1.1 |
|
搅拌转速Stirring speed |
rpm |
11 |
|||||||
蒸汽耗Consumption of steam |
Kg/h |
141 |
170 |
210 |
240 |
282 |
366 |
451 |
|
操作时间Time of operation |
min |
15~45 |
|||||||
主机尺寸Hight of main machine |
Square |
mm |
2750 |
2850 |
2850 |
2900 |
3100 |
3300 |
3650 |
Round |
mm |
2700 |
2900 |
2900 |
2900 |
3100 |
2600 |
3850 |
