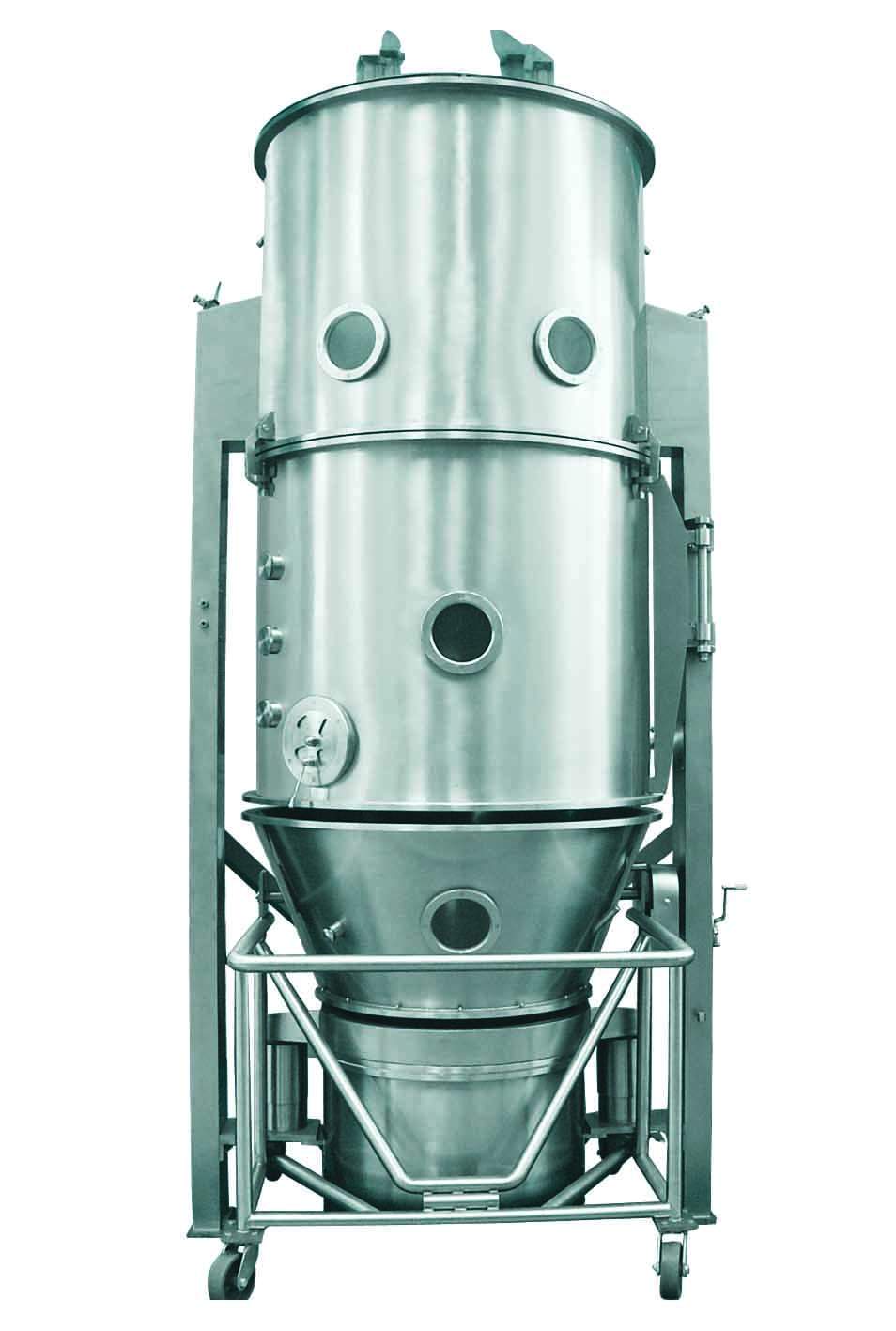

FL series fluidized granulator
 |
1,Principle of work
The powder grannle in the container (fluidization) appear in the state of fluidization.It is preheated and mixed with clean and heated air . At the same time the solution of adhesive solvent is fogged and sprayed into the container.It makes the some partic -les become granulating that contains adhesive.Being of uncea -sing dry through hot air, the moisture in the granulation is evap -orated and the adhesive is olidification.The process is carried out continuously. Finally it forms ideal , uniform and Porous gra -nules.
2,Features
¡ô Because of powder Granulation ,the fluidity is improved and the dust is reduced;
¡ô Because of powder Granulation ,its solving property is improved;
¡ô The mixing ,Granulation and drying can be completed in one step inside the machine;
¡ô The operation of equipment is safe because the anti static filtering cloth is adapted;
¡ô The operating personnel can not be damaged if explosion take place because there is releasing hole;
¡ô The equipment has no dead corner.Therefore the loading and unloading are quick and light and clean.
It can meet the requirements of GMP.
3,Applications
¡ô Phamaceutical industry:tablet,capsule,low sugar or no sugar granule of Chinese medicine.
¡ôFoodstuff:cocoa,coffee,milk powder,juice of granulate,flavoring and so on.
¡ôOther industries:peticide,feed chemical fertilizer,pigment,dyestuff and so on.
¡ô Pharmaceutical industry:tablet;
4,Technical Parameter
| Item | Unit |
Type |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
3 |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|||
| Container | Volume | L |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
| Diameter | mm |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
| Capability | Min | Kg |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
| Max | Kg |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
|
| Fan | Capacity | m3/h |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
| Pressure | mmH2O |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
|
| Power | Kw |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
| Steam expenditure | Kg/h |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
|
| Compressed air expenditure | m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
1.5 |
|
| Weight of the main body | Kg |
500 |
700 |
900 |
1000 |
1100 |
1300 |
1500 |
1800 |
2000 |
|
| Steam pressure | Mpa |
0.3~0.6 |
|||||||||
| Temperature | ¡æ |
ajustable at the range from room temperature to 120
¡æ
|
|||||||||
| Working time | min |
decided in accordance with the proplerties of raw materials |
|||||||||
| Field | % |
¡Ý 99 |
|||||||||
| noise | dB(A) |
When installation,main machine is separated from fan ¡Ü75dB(A) |
|||||||||
| Size£¨L*W*H£© | m |
1.0 ¡Á0.6 ¡Á2.1 |
1.2 ¡Á0.7 ¡Á2.1 |
1.25 ¡Á0.9 ¡Á2.5 |
1.6 ¡Á1.1 ¡Á2.5 |
1.85 ¡Á1.42 ¡Á3 |
2.2 ¡Á1.65 ¡Á3.3 |
2.34 ¡Á1.7 ¡Á3.8 |
2.8 ¡Á2.0 ¡Á4.0 |
3 ¡Á2.25 ¡Á4.4 |
|
