1.产品简介 Description
WFJ超微粉碎机组、超细粉碎机、微粉碎机由主机、辅机、电控箱三个部分组成,具有风选式、无筛、无网、粒度大小均匀等多种性能,生产过程连续进行。该机在粉碎作业时主机不升温,可粉碎各种热敏性物料,特别适用于粉碎纤维状和带一定油脂的物料。其综合性能已达到国际先进水平,该机广泛运用于制药、化工、食品、饲料、烟草、碳酸钙、植物纤维、染料、涂料、农药等低硬度物料的超细粉碎。(例:中药、食品、化工、保健、根类、径类、玉米、大米、辣椒、胡椒、油麦、大豆、大蒜、八角、桂皮、脱水蔬菜、山楂、干姜、白糖、糖精、粮食类、虾皮、南瓜粉、调料)。

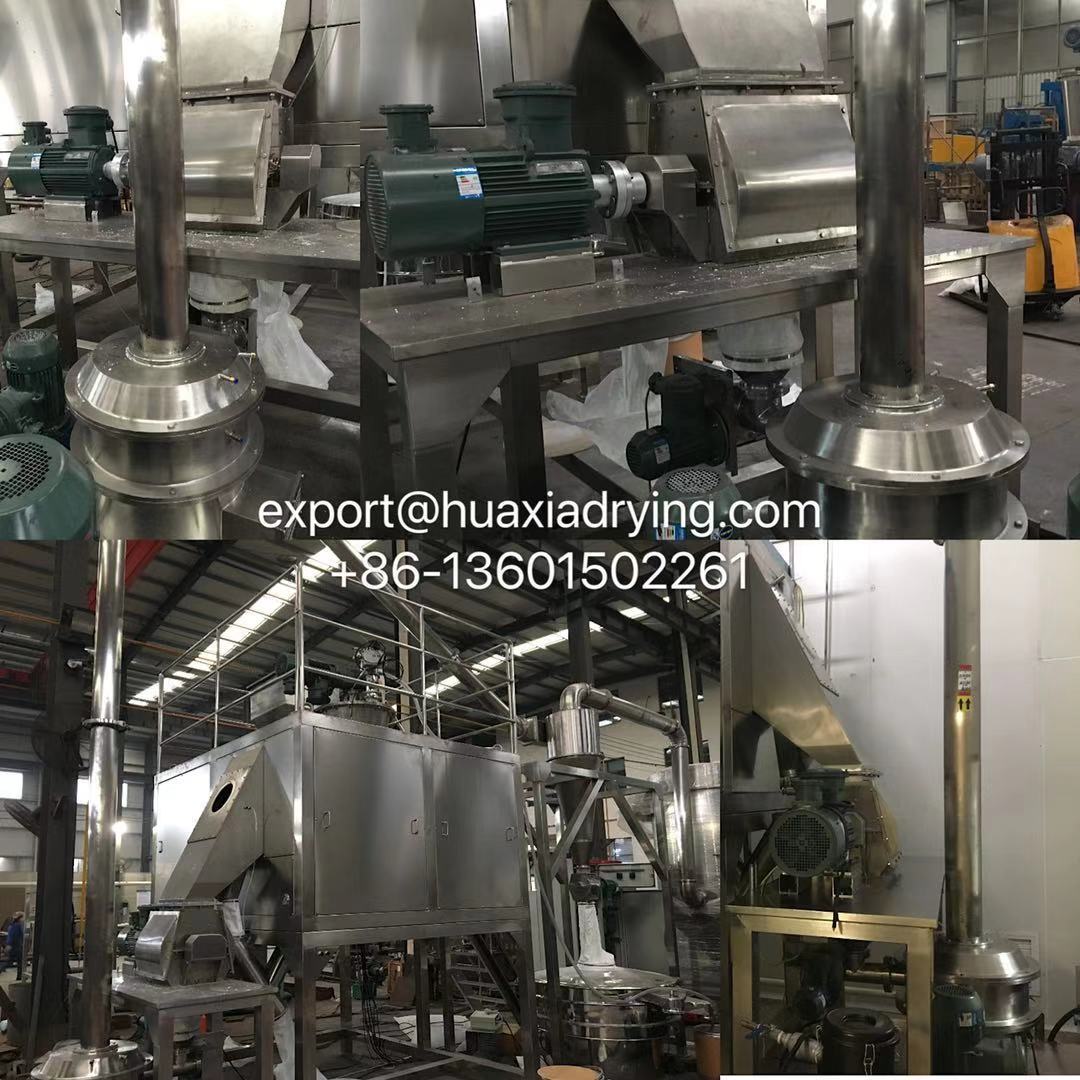

该机是一种立轴反射型微粉碎机,能同时完成微粉碎和微粉分选的两道加工工序。本机由机体、机架、喂料装置、粉碎装置、出料管、传动装置和电机等组成,配套由主机、脉冲除尘器、高压离心风机、关风器、旋风集料器和电控柜等组成整套气流涡轮微粉机组。在不停机的情况下,可任意调节粉碎粒度,产品粒度均匀,该机具有自冷却功能。物料由加料斗进入粉碎室,通过高速旋转的刀盘进行粉碎,粉碎细度可调节分级刀与分级盘的转速来达到所需要的细度,粉碎好的物料经转子离心力和引风机的作用进入旋风集料器,然后通过关风机出料,粉尘进入脉冲除尘箱,经过过滤筒过滤后回收利用。该机按“GMP"标准设计,超微粉碎机整机全部用304不锈钢材料制造,粉碎过程无粉尘飞扬。
The WFJ superfine pulverizing unit, superfine pulverizer and micro pulverizer are composed of three parts: main engine, auxiliary machine and electric control box. They have various properties such as air-selective, no-screen, no mesh, uniform particle size and so on. get on. The machine does not heat up during the smashing operation, and can pulverize various heat sensitive materials, and is especially suitable for pulverizing fibrous materials and materials with certain grease. Its comprehensive performance has reached the international advanced level. The machine is widely used in ultra-fine crushing of low hardness materials such as pharmaceutical, chemical, food, feed, tobacco, calcium carbonate, plant fiber, dyes, coatings and pesticides. (Example: Chinese medicine, food, chemical, health care, roots, diameter, corn, rice, pepper, pepper, oil wheat, soybean, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, sugar, saccharin, food, Shrimp skin, pumpkin powder, seasoning).
The machine is a vertical axis reflection type micro-grinder, which can simultaneously complete two processing steps of micro-grinding and fine powder sorting. The machine is composed of a body, a frame, a feeding device, a pulverizing device, a discharging pipe, a transmission device and a motor, and is matched by a main machine, a pulse dust collector, a high-pressure centrifugal fan, a wind shut-off device, a cyclone collector and an electric control cabinet. The same set of airflow turbine micro-powder units. In the case of no downtime, the crushing particle size can be arbitrarily adjusted, the product granularity is uniform, and the machine has a self-cooling function. The material enters the crushing chamber from the feeding hopper and is pulverized by the high-speed rotating cutter head. The fineness of the crushing can adjust the rotation speed of the classifying knife and the classifying plate to achieve the required fineness, and the crushed material enters through the centrifugal force of the rotor and the effect of the induced draft fan. The cyclone collector is then discharged through the fan, and the dust enters the pulse dust box and is filtered through the filter cartridge for recycling. The machine is designed according to the "GMP" standard. The whole machine of the superfine pulverizer is made of 304 stainless steel material, and the pulverization process is free of dust and flying.
2.技术参数Technical Parameter
型号 |
生产能力 |
进料粒度 |
出料粒度 |
总功率 |
主轴转速 |
重量 |
外形尺寸 |
15型 |
50-200 |
≤10 |
80-320 |
18.5 |
~5800 |
1000 |
6500×1000×2700 |
20型 |
80-300 |
≤10 |
22 |
~4200 |
1200 |
7000×1200×2700 |
|
30型 |
200-800 |
≤10 |
46 |
~3800 |
1500 |
8000×1300×3800 |
|
60型 |
500-1000 |
≤12 |
84.15 |
~3200 |
3200 |
8500×2200×4500 |
|
80型 |
800-1500 |
≤12 |
100.4 |
~2800 |
3800 |
9500×2500×4800 |
