1.Descriptions

High-speed mixing granulator: high-speed mixing wet granulator is to add the main material and auxiliary materials to be granulated to the agitator in a suitable proportion and formula. The powder material and the binder are in the bottom of the cylindrical container. After the mixing paddle is fully mixed at a high speed, it is made into a wet soft material, and then cut into uniform wet particles by a side-mounted high-speed pulverizing paddle, thereby achieving the purpose of granulation. Vacuum drying and auxiliary system equipment can also be selected to achieve one-step access to the finished product directly. The biggest feature of this mixing device is fast, uniform, and no dead angle. At present, it is widely used in applications where uniformity of uniformity is required for pharmaceuticals, electronics, batteries, magnets, etc. It is gradually replacing conventional double-spiral hybrids and snails on some production lines. With mixing and double cone mixer.
2.Features
The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
Short granulating time, high efficiency and energy saving
The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material for tablet pressing procedure.
Compare with traditional process, it can reduce 25% of binder and shorten drying time too.
Each batch needs 2 minutes to dry mixing and 1 ~ 4 minutes to granulating. Compared with traditional process, its efficiency can raise 4 ~ 5 times.
Whole operation has strict safe protective measures

3.Applications
GHL high speed mixing granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is wide used for pharmaceutical industry, foodstuff industry and chemical industry, etc.



4.Technical Parameters

         Specification
Item

10

50

150

200

250

300

400

600

Container voiume

L

10

50

150

200

250

300

400

600

Capacity

kg/batch

3

15

50

60

80

100

135

200

Mixing speed

r.p.m

300/600

200/400

180/270

180/270

180/270

140/220

106/155

80/120

Mixing power

Kw

1.2/2.2

4/5.5

6.5/8

9/11

9/11

13/16

18.5/22

22/30

Cutting speed

r.p.m

1500/300

Cutting power

Kw

0.85/1.1

1.3/1.8

2.4/3

4.5/5.5

4.5/5.5

4.5/5.5

6.5/8

9/11

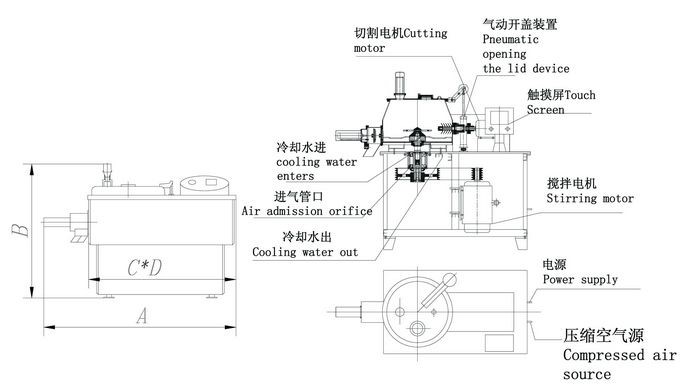

Size of installation for reference

A(mm)

1350

1650

1750

2050

2050

2200

2350

2400

B(mm)

1050

1250

1300

1400

1400

1450

1450

1550

C×D(mm)

1000×650

1250×800

1350×800

1650×850

1650×850

1700×900

1860×1050

2000×1050
